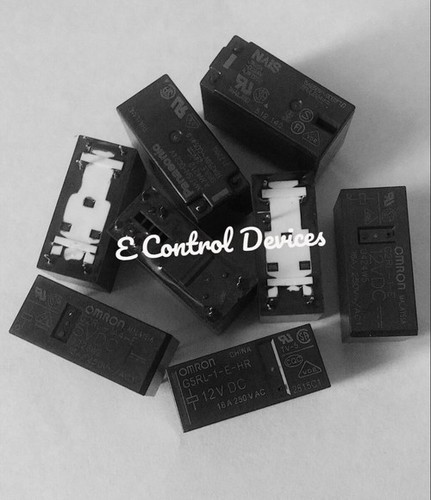

PCB Power Relays

PCB Power Relays
PCB Power Relays
Product Code : JW1FSN-DC12V
Brand Name : Omron
Price And Quantity
  • Minimum Order Quantity
  • 350
  • Unit of Measure
  • Pieces
Product Specifications
  • Contact Form
  • 1 FORM C
  • Coil Voltage
  • 12 Volt (V)
  • Product Type
  • Power Relays
  • Usage
  • Industrial Machinery
  • Rated Voltage
  • 5 Ampere (A)
  • Color
  • Black
  • Weight
  • 13 Grams (g)
Product Description

PCB Power Relays which also contain an armature, a spring and one or several contacts. If the power relay is designed to normally be open, when power is applied, the electromagnet attracts the armature, which is then pulled in the coil's direction until it reaches a contact, therefore closing the circuit. If the relay is designed to be normally closed, the electromagnetic coil pulls the armature away from the contact, therefore opening the circuit.

We E CONTROL DEVICES a leading supplier offering a wide range of Electrical & Electronic Components including Energy Saving Panasonic Pir Motion Sensors , PCB Power Relays ,High Power Relays, Micro Switches, 3M Engineered Fluids for Precision Cleaning & Vapor Degreasing  , Solvent for Electronic Grade Coatings , 3M Thermal Conductive Tapes, Thermal Conductive Pads, Grease , 3M Cables & Connectors , Blaze LCD Displays ,  RFID Products  and other Semiconductor components.

PCB Power Relays (G2RL Series ):-  A wide variety of single pole, double pole, high-capacity (16 Amp) type and high-sensitivity type (250 mW) Omron Relays are available ,  Low profile; 15.7 mm max. in height  .

Specifications:-

  • Contact Form: SPDT (1c), SPST-NO (1a)
  • Classification: Standard ,  High-capacity , High-sensitivity
  • Number of Pole :1 pole , 2 pole
  • Voltage Rating : 5VDC, 12VDC , 24VDC , 48VDC
  • Applications : Home appliances , OA equipments ,  Industrial machinery
PCB Power Relays ( JW Series):-  Ideal for Power Supply 5A/10Amp Panasonic  Relays , Miniature package with universal terminal footprint , High dielectric withstanding for transient protection , 10,000 V surge in between coil and contact , Sealed construction ,  Class B coil insulation types available , Sockets are available.

Specifications:-
  • Contact Form: Form 1 ,Form C, 1 Form A, 2 Form C, 2 Form A
  • Classification :  Standard (5 A) High capacity (10 A)
  • Number of Pole :1 pole , 2 pole
  • Voltage Rating : 5VDC, 6VDC , 9VDC , 12VDC , 24 VDC , 48VDC
  • Applications :  Home Appliances , Office Machines , Industrial Equipment
Available Series :-  G2RL-14- DC12 , G2RL-1A4-E DC12 , G2RL-1A-E DC12 , G2RL-1-E-DC12 , G2RL-1-E-DC24 , JW1FSN-DC12V, JW1FSN-DC24V, JW2ASN-DC12V, JW2ASN-DC24V.
Trade Information
  • Supply Ability
  • Depend on Order Per Day
  • Delivery Time
  • 2 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Sample costs shipping and taxes has to be paid by the buyer
  • Main Export Market(s)
  • Eastern Europe, Australia, Asia
  • Main Domestic Market
  • All India
